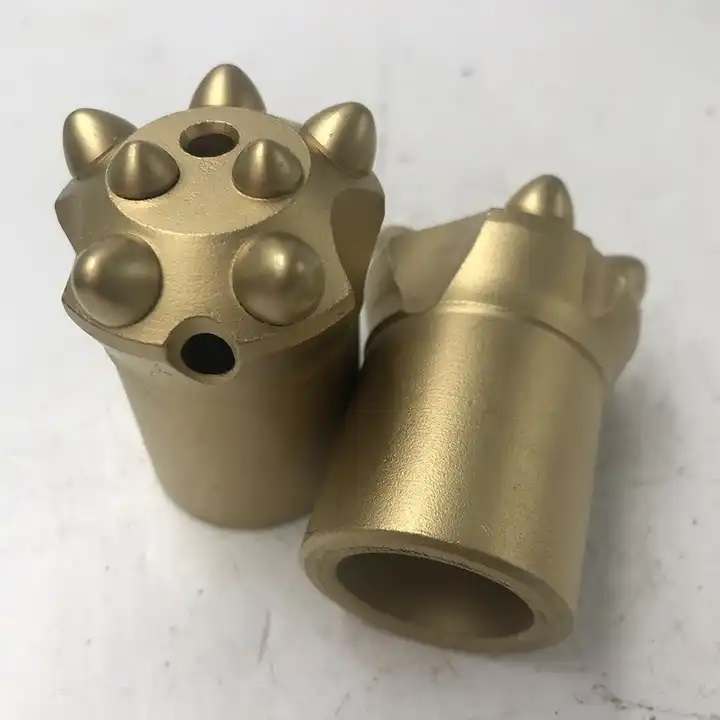

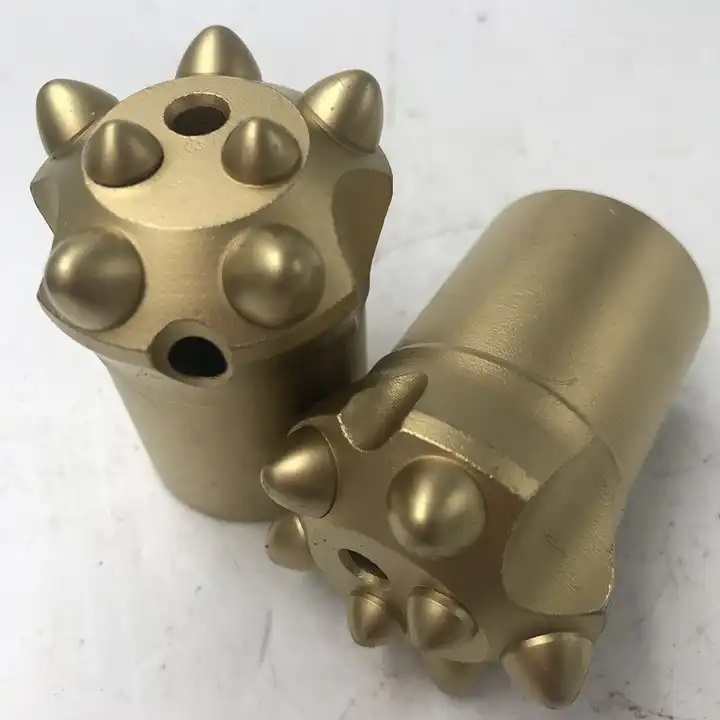

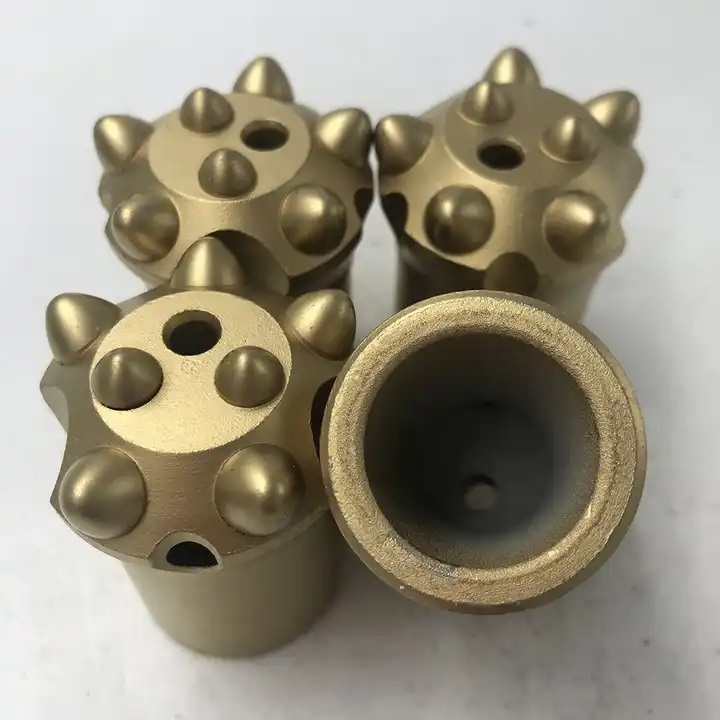

Tapered Bits Description:
(1)Connect shank Size: H22*108
(2)Bit Diameter: 32mm,34mm,35mm,36mm, 38mm,40mm,41mm, 42mm
(3)Tapered Angle:711 degree 11 degree 12 degree
(4)Material: Body: 45CrNiMoV; Tungsten Carbide:YK05 or T6.
(5)Button Shape: Conical; Face Type: Flat Face; Bit Body: Standard
(6)Qty of button: 7 pcs
Tapered Drill Bit is different with thread button bit as long hole bit to use taper match with bit rod to be used for air leg or hand held jack hammerdriller in stone quarrying, and mining.
For high quality small-hole drilling consumables ( tools, accessories , spareparts ), We will choose to use tungsten carbide of T6，featuring good wear-resistance and toughness. This type of carbide has already been proved to be the best in China and been competing with those big names worldwide for quite a long time. Meanwhile，we will choose to use superior steel suitable for hot insertion technology, by which the drilling bits body will hold the carbide buttons so tightly that reduce the risk of buttons’ dropping out of the holes. In order to better resist the abrasiveness of rock, spherical shape will be a good option for the carbide if high speed is not a necessity.
Drill Tools Button bit - For 22 mm (7/8") hex. Rod 7° taper angle. Long skirt DiameterLengthNo. of buttonsButtons x button diameterGaugebuttonsangle°buttons angle°Flushing holeWeight approx.mminchmminch mmmm SideCenterkg | |||||||||||
| 30 | 1 ³⁄16" | 80 | 3 5⁄32" | 7 | 5x6 | 2x7 | 35° | 15° | 2 | 1 | 0.2 |
| 32 | 1 ¼" | 80 | 3 5⁄32" | 7 | 5x7 | 2x7 | 35° | 15° | 1 | 1 | 0.3 |
| 33 | 1 5⁄16" | 80 | 3 5⁄32" | 8 | 6x7 | 2x7 | 40° | 15° | 1 | 2 | 0.3 |
| 33 | 1 5⁄16" | 80 | 3 5⁄32" | 9 | 6x7 | 3x7 | 40° | 20° | 3 | 0.4 | |
| 35 | 1 ⅜" | 80 | 3 5⁄32" | 7 | 5x8 | 2x7 | 40° | 15° | 1 | 1 | 0.4 |
| 37 | 1 ¹5⁄32" | 80 | 3 5⁄32" | 7 | 5x9 | 2x7 | 40° | 15° | 1 | 1 | 0.4 |
| 41 | 1 ⅝" | 80 | 3 5⁄32" | 7 | 5x9 | 2x8 | 40° | 15° | 1 | 1 | 0.4 |
| Drill Tools Button bit - For 22 mm (7/8") hex. Rod. 11° taper angle. Short skirt. | |||||||||||
| Diameter | Length | No. of buttons | Buttons x button diameter | Gauge buttons angle° | buttons angle° | Flushing hole | Weight approx. | ||||
| mm | inch | mm | inch | mm | mm | Side | Center | kg | |||
| 32 | 1 ¼" | 55 | 2 5⁄32" | 8 | 6x7 | 2x7 | 39° | 15° | 1 | 1 | 0.2 |
| 32 | 1 ¼" | 50 | 1 ³¹⁄32" | 6 | 4x7 | 2x7 | 35° | - | 1 | 1 | 0.3 |
| 34 | 1 ¹¹⁄32" | 50 | 1 ³¹⁄32" | 5 | 3x8 | 2x7 | 35° | - | 2 | 1 | 0.2 |
| 34 | 1 ¹¹⁄32" | 50 | 1 ³¹⁄32" | 9 | 6x7 | 3x7 | 40° | 20° | 2 | 0.3 | |
| 34 | 1 ¹¹⁄32" | 50 | 1 ³¹⁄32" | 6 | 4x7 | 2x7 | 40° | - | 1 | 1 | 0.2 |
| 35 | 1 ⅜" | 55 | 2 5⁄32" | 7 | 5x8 | 2x7 | 40° | 15° | 1 | 1 | 0.3 |
| 36 | 1 ¹³⁄32" | 50 | 1 ³¹⁄32" | 7 | 5x8 | 2x7 | 35° | - | 1 | 1 | 0.3 |
| 36 | 1 ¹³⁄32" | 50 | 1 ³¹⁄32" | 5 | 3x8 | 2x8 | 40° | - | 2 | 1 | 0.2 |
| 38 | 1 ½" | 50 | 1 ³¹⁄32" | 4 | 3x9 | 1x9 | 40° | - | 2 | 1 | 0.3 |
| 38 | 1 ½" | 50 | 1 ³¹⁄32" | 7 | 5x9 | 2x7 | 35° | - | 1 | 1 | 0.3 |
| 41 | 1 ⅝" | 50 | 1 ³¹⁄32" | 7 | 5x9 | 2x7 | 35° | - | 2 | 1 | 0.3 |
| 43 | 1 ¹¹⁄16" | 50 | 1 ³¹⁄32" | 7 | 5x9 | 2x9 | 35° | - | 2 | 1 | 0.4 |
| Drill Tools Button bit - For 22 mm (7/8") hex. Rod. 12° taper angle. Short skirt. | |||||||||||
| Diameter | Length | No. of buttons | Buttons x button diameter | Gauge buttons angle° | buttons angle° | Flushing hole | Weight approx. | ||||
| mm | inch | mm | inch | mm | mm | Side | Center | kg | |||
| 27 | 1 ¹¹⁄16" | 50 | 1 ³¹⁄32" | 6 | 4x8 | 2x6 | 40° | 15° | 1 | 1 | 0.2 |
| 28 | 1 ⅛" | 50 | 1 ³¹⁄32" | 4 | 3x7 | 1x7 | 20° | - | 1 | 1 | 0.1 |
| 28 | 1 ⅛" | 50 | 1 ³¹⁄32" | 6 | 4x6 | 2x6 | 35° | - | 1 | 1 | 0.2 |
| 30 | 1 ³⁄16" | 50 | 1 ³¹⁄32" | 6 | 4x7 | 2x7 | 30° | - | 1 | 1 | 0.2 |
| 32 | 1 ¼" | 55 | 2 5⁄32" | 7 | 5x7 | 2x7 | 35° | - | 1 | 2 | 0.3 |
| 32 | 1 ¼" | 55 | 2 5⁄32" | 7 | 5x7 | 2x7 | 35° | - | 1 | 1 | 0.2 |
| 32 | 1 ¼" | 55 | 2 5⁄32" | 8 | 6x7 | 2x7 | 39° | 15° | 1 | 2 | 0.3 |
| 33 | 1 5⁄16" | 55 | 2 5⁄32" | 7 | 5x7 | 2x7 | 35° | - | 1 | 2 | 0.2 |
| 33 | 1 5⁄16" | 55 | 2 5⁄32" | 7 | 5x7 | 2x7 | 35° | - | 1 | 1 | 0.2 |
| 33 | 1 5⁄16" | 55 | 2 5⁄32" | 8 | 6x7 | 2x7 | 35° | - | 1 | 2 | 0.2 |
| 33 | 1 5⁄16" | 55 | 2 5⁄32" | 7 | 5x8 | 2x7 | 40° | 15° | 1 | 1 | 0.2 |
| 34 | 1 ¹¹⁄32" | 55 | 2 5⁄32" | 7 | 5x8 | 2x7 | 35° | - | 1 | 1 | 0.2 |
| 35 | 1 ⅜" | 55 | 2 5⁄32" | 7 | 5x9 | 2x7 | 35° | - | 1 | 1 | 0.2 |
| 36 | 1 ¹³⁄32" | 55 | 2 5⁄32" | 7 | 5x9 | 2x7 | 35° | - | 1 | 1 | 0.3 |
| 37 | 1 ¹5⁄32" | 55 | 2 5⁄32" | 7 | 5x9 | 2x7 | 40° | - | 1 | 1 | 0.3 |
| 38 | 1 ½" | 55 | 2 5⁄32" | 7 | 5x9 | 2x7 | 40° | - | 1 | 1 | 0.3 |
| 38 | 1 ½" | 55 | 2 5⁄32" | 4 | 3x9 | 1x9 | 40° | - | 1 | 1 | 0.2 |
| 38 | 1 ½" | 55 | 2 5⁄32" | 7 | 5x9 | 2x7 | 35° | - | 1 | 1 | 0.2 |
| 38 | 1 ½" | 55 | 2 5⁄32" | 7 | 5x9 | 2x7 | 35° | - | 1 | 1 | 0.2 |
| 41 | 1 ⅝" | 55 | 2 5⁄32" | 7 | 5x9 | 2x7 | 35° | - | 1 | 1 | 0.3 |
| 45 | 1 ¾" | 55 | 2 5⁄32" | 7 | 5x9 | 2x7 | 35° | - | 1 | 1 | 0.3 |
| Drill Tools Button bit - For 22 mm (7/8") hex. Rod 12° taper angle. Long skirt | |||||||||||
| Diameter | Length | No. of buttons | Buttons x button diameter | Gauge buttons angle° | buttons angle° | Flushing hole | Weight approx. | ||||
| mm | inch | mm | inch | mm | mm | Side | Center | kg | |||
| 32 | 1¼" | 71 | 2 ²5⁄32" | 7 | 5x7 | 2x7 | 35° | - | 1 | 1 | 0.3 |
| 33 | 1 5⁄16" | 71 | 2 ²5⁄32" | 7 | 5x7 | 2x7 | 35° | - | 1 | 1 | 0.3 |
| 33 | 1 5⁄16" | 71 | 2 ²5⁄32" | 8 | 6x7 | 2x7 | 40° | 15° | 1 | 2 | 0.3 |
| 33 | 1 5⁄16" | 71 | 2 ²5⁄32" | 9 | 6x7 | 3x7 | 40° | 20° | 3 | - | 0.3 |
| 35 | 1 ⅜" | 71 | 2 ²5⁄32" | 8 | 6x8 | 2x7 | 45° | 15° | 1 | 2 | 0.3 |
| 38 | 1 ½" | 71 | 2 ²5⁄32" | 7 | 5x9 | 2x7 | 35° | - | 1 | 1 | 0.4 |
Business Type: | Manufacturer, Exporter |
Brands: | KUANGBAO |
Price: | Consultation |
Packing details: | Plastic/Wooden case |
Delivery time: | 7 days after get payment |
Payment method: | T/T , Western Union, money gram, L/C at sight |
Usage: | Foundation piling. Quarry, mining, soil nailing, water well drilling, tunneling and etc. |
We have various factories and products, experienced technicians and sales team, professional quality assurance and after-sales team to help your business start and succeed.
