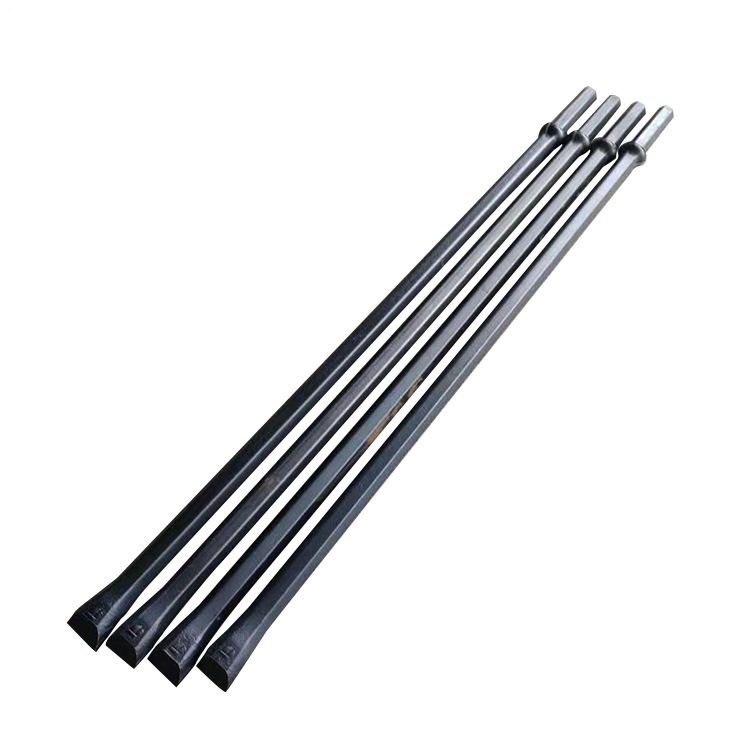

H22 H25 Drill Steel Rod 12 Degree Taper Drill Rod for Hydraulic Machine 11 Degree Taper Drill Rod

Product name:H22 H25 professional taper drill rods
Length:400mm ~8200mm
Shank size:Hex.22mm, Hex.25mm.
Taper degree:7°,11°12°
Weight:1.5~11.5KG
Packing specification:Wooden Case
Applicaton:Drilling hole
Machine:Pneumatic rock drill and Hydraulic drill rig

  Rock drilling tools Tapered Drill Rod is to provide a hexagonal chuck section to provide leverage for the rotation chuck bushing. It usually has a forged collar to maintain the proper shank striking face position in the rock drill, and a tapered drill bit end. Tapered steel lengths are measured from the collar to the bit end. Holes are usually drilled in 0.6 m increments to accommodate the air leg feed length. The drilled steel is extracted and followed with a slightly smaller diameter rock drill bit on the next steel length in the sequence.


   Carburization is a process used to harden the entire tapered drill rod surface both internally and externally to strengthen and extend the life of the tapered drill rod.

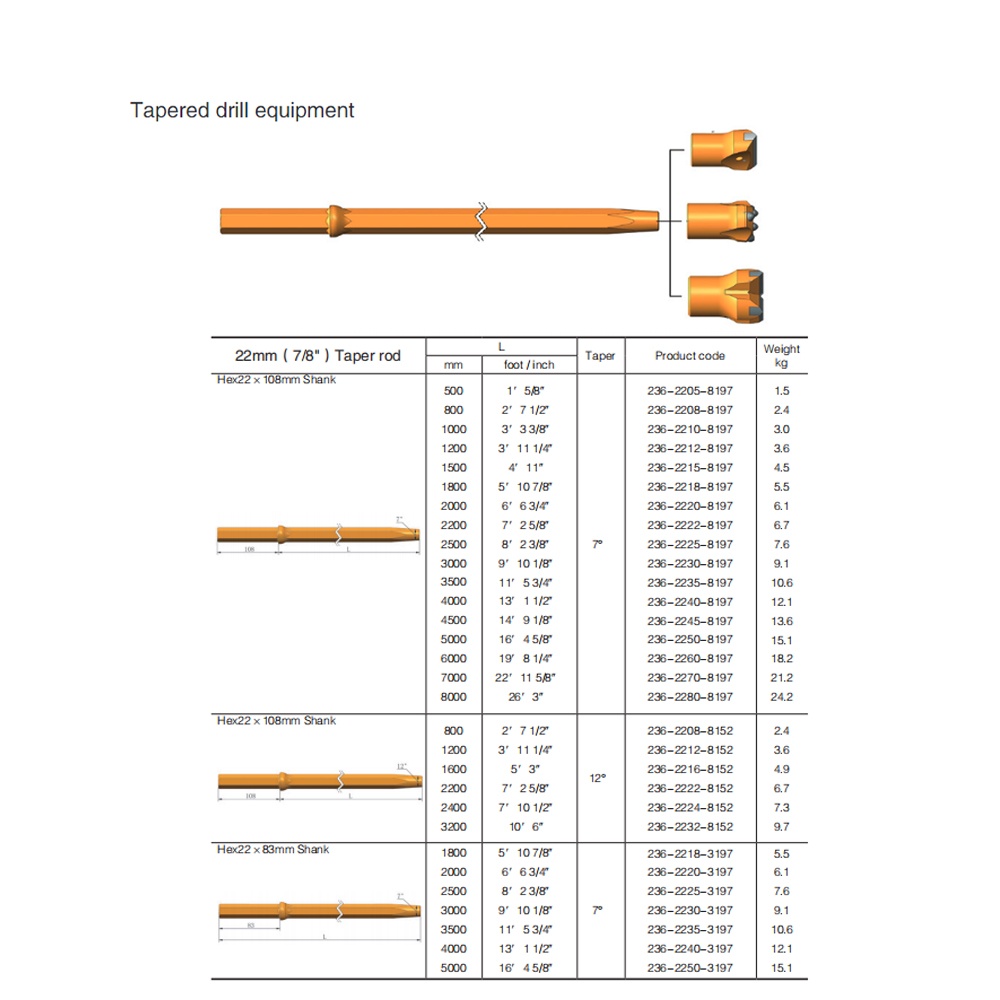

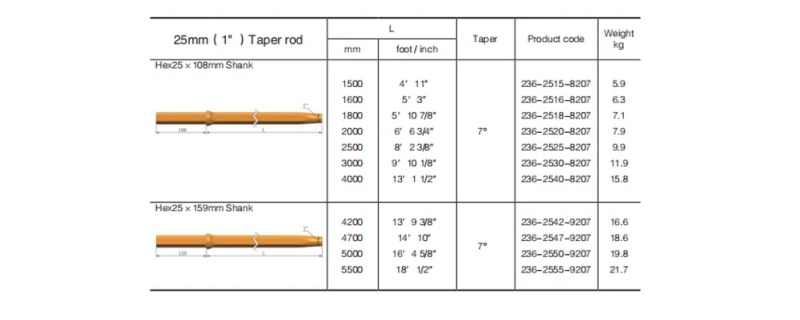

   Shank Hexagon: 19*108 mm, 22*108mm, 25*108 mm, 25*159 mm; 6, 7, 11, 12 degree taper in most lengths, taper degree of drill steel is mostly imports for excellent drilling productivity.

H22 H25 (1)

   For drilling medium-hard to hard and abrasive rock formations, taper angles of 11 and 12-degrees are normally used on modern drill rigs, like our model no. PD-Y58 crawler hydraulic rock drill. Also for Y6, Y10, Y24, YT24, Mobile rock drills pneumatic and hydraulic. For low impact rock drills and softer rock formations, a narrow tape range of 7 degrees is used, such as Indian, Saudi’s granite and marble quarry. A comprehensive range of taper button bits, cross bits and chisel bits with 6, 7, 11, 12 degree taper, drill hole diameter: 28mm-57mm.

Business Type:

Manufacturer, Exporter

Brands:

KUANGBAO

Price:

Consultation

Packing details:

Plastic/Wooden case

Delivery time:

7 days after get payment

Payment method:

T/T , Western Union, money gram, L/C at   sight

Usage:

Foundation piling. Quarry, mining, soil   nailing, water well drilling, tunneling and etc.
