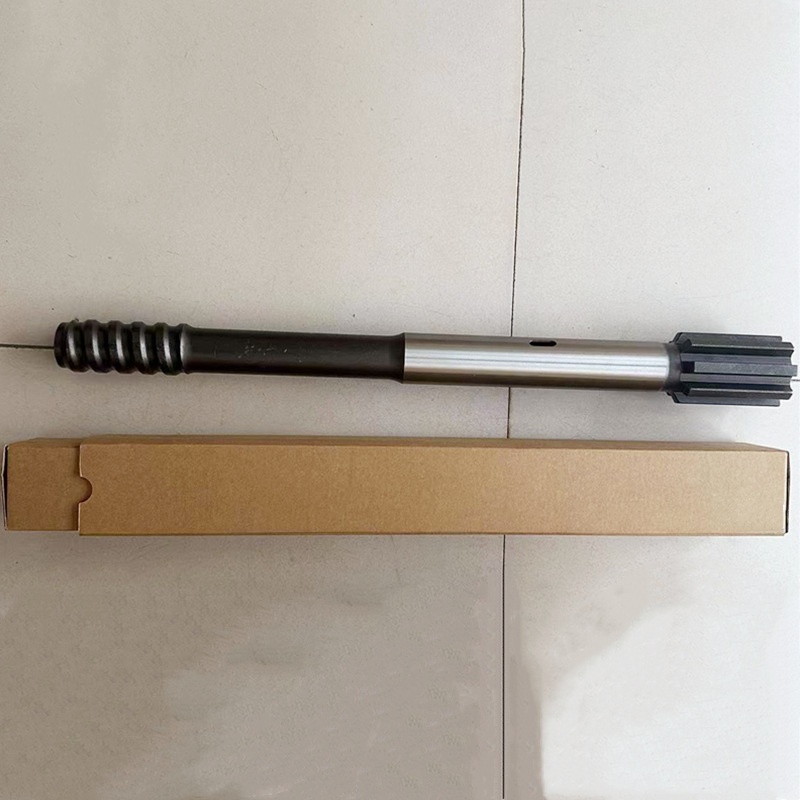

HD709 T45-620 Shank Adapter

Code No.: HD709-T45-620
Thread Type:T45
Length: 620mm
Rock Drill Type: HD709
Rock Drill Manufacturer: Furukawa

    This belongs to the RP series shank adaptorl of the HD rock drill under the Furukawa brand.produces shank adapters for most models of current prevailing rock drill machines. All our shank adaptors are carburized, CNC manufactured and made from premium steel. Thus ensure them with superior toughness and anti-fatigue strength to meet the most demanding drilling conditions. Moreover, all shanks could be produced with ether male or female threads if it is actually necessary.

    Male shank adapters are generally better suited for drifting, tunneling and extension applications where high bending stresses are present. While female shank adapters are used when the drilling space is limited and the total feed length is important, for example underground roof bolting.

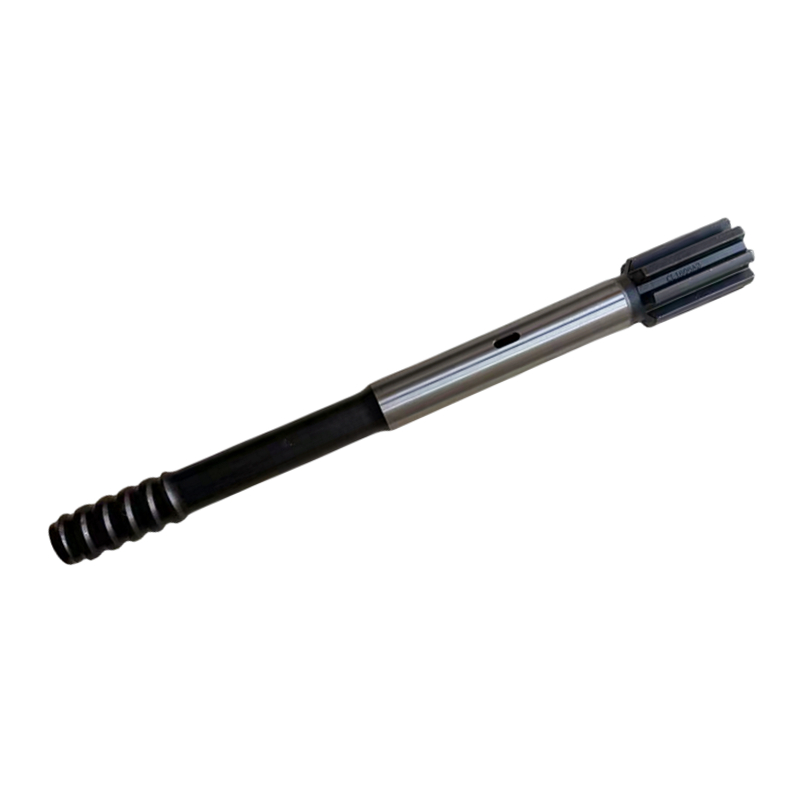

HD709 T45-620 Shank Adapter (3)

    The task of the shank adapter is to transmit rotation torque, feed force, impact energy and flushing medium to the drill string (extension drill rods, drifting drill steels).

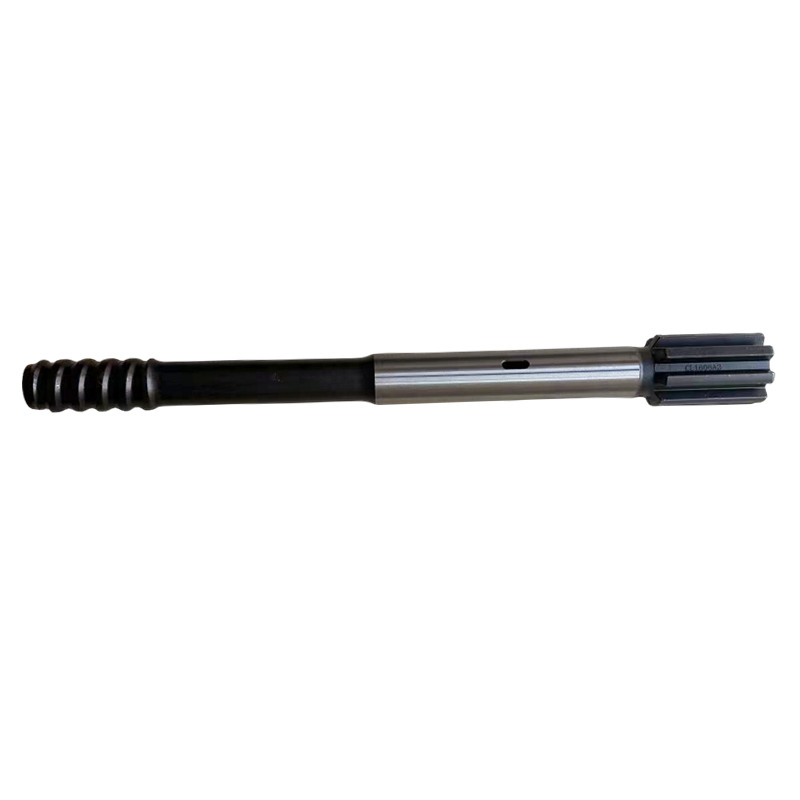

HD709 T45-620 Shank Adapter (4)

Two flushing options of shank adapters: internal or external
— Internal flushing uses a water tube that fits through the center of the drill and into an o-ring seal in the end of the shank, to transfer flushing into the drill string
— External flushing, holes or a slot are required in the side of the shank adapter.These line up between seals inside the front head or water box of the rock drill, when the shank is installed. Flushing medium is supplied directly to this device and is introduced into the drill string through the shank
— External flushing is considered superior to internal flushing, as greater volumes of flushing agent can be delivered with less risk of leakage and hammer damage from water
The shanks for hydraulic drills and some pneumatic drills have external or front head flushing. Hydraulic shanks generally have at least 5 to 14-spline configuration, Pneumatic shanks tend to have internal or through flushing and can generally be identified by their lugs or 4-spline configuration.

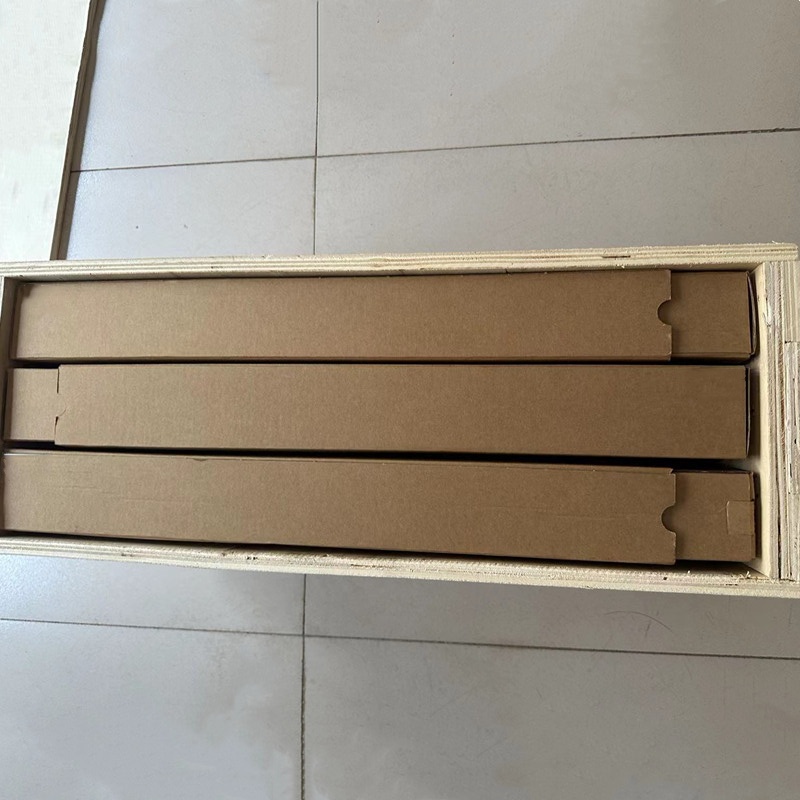

T45-620 for Furukawa HD709 packaging:

Business Type:

Manufacturer, Exporter





Packing details:

Plastic/Wooden case

Delivery time:

7 days after get payment

Payment method:

T/T , Western Union, money gram, L/C at   sight


Foundation piling. Quarry, mining, soil   nailing, water well drilling, tunneling and etc.
