Longyan Kailong Mining Equipment Co., Ltd.

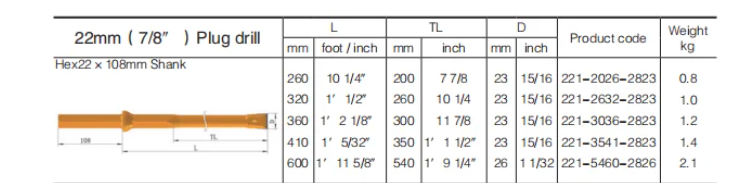

Shank size: 22*108
Length: 4000/4700/5000/5500mm
Taper Degree:6° 7°, 11°, 12°.

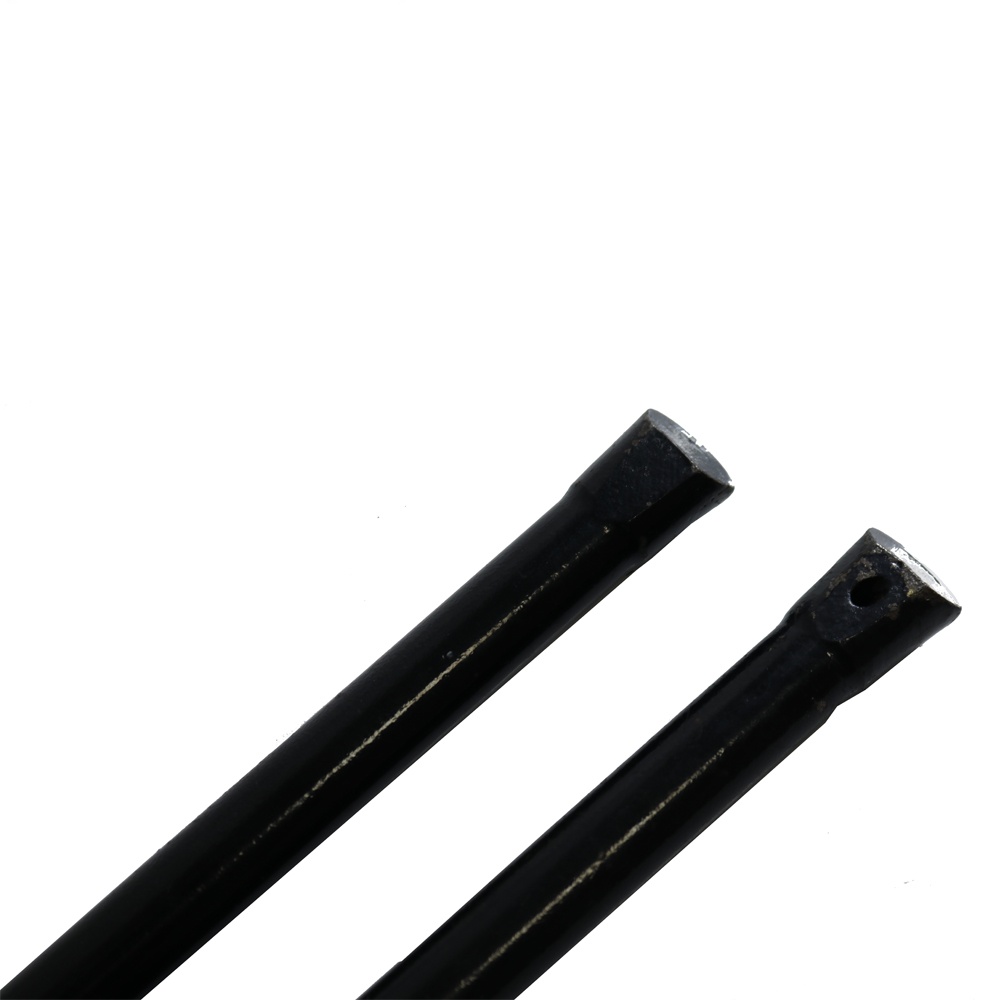

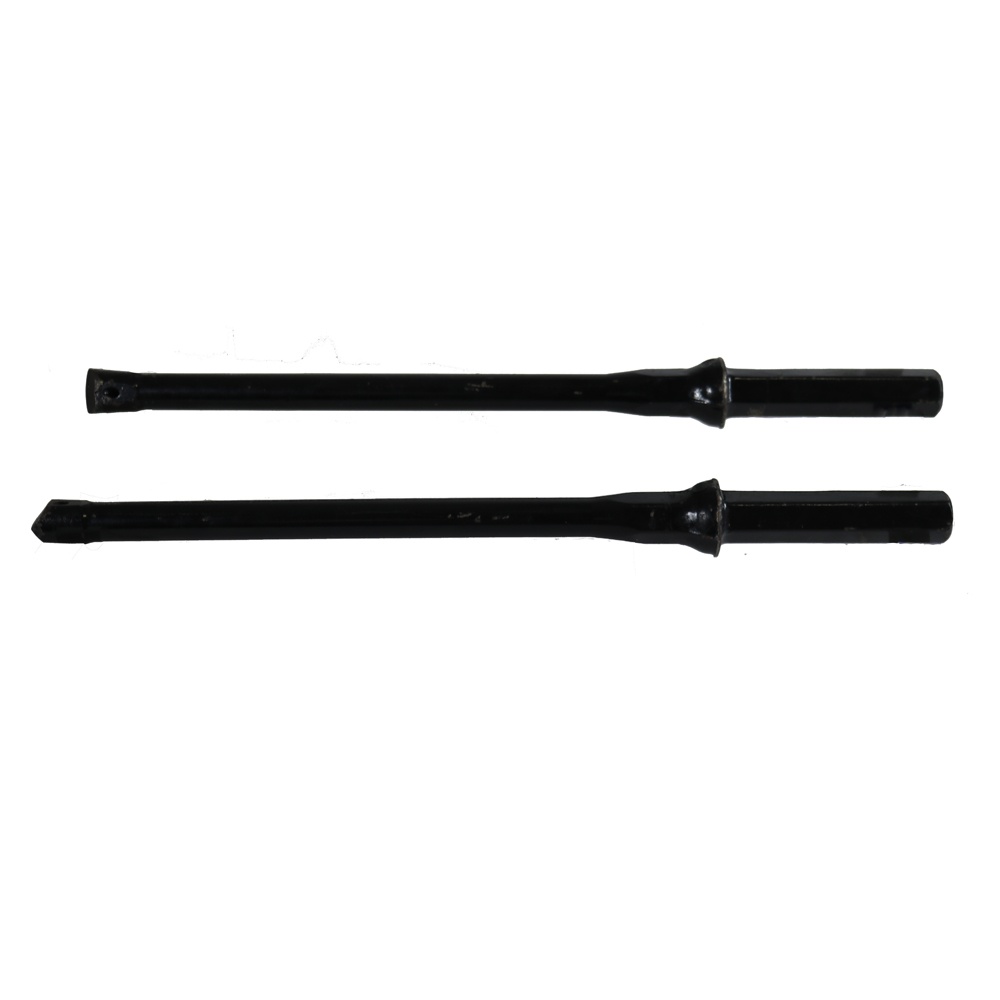

Tapered Drill Rod is to provide a hexagonal chuck section to provide leverage for the rotation chuck bushing. It usually has a forged collar to maintain the proper shank striking face position in the rock drill, and a tapered drill bit end. Tapered steel lengths are measured from the collar to the bit end. Holes are usually drilled in 0.6 m increments to accommodate the air leg feed length. The drilled steel is extracted and followed with a slightly smaller diameter rock drill bit on the next steel length in the sequence.
Carburization is a process used to harden the entire tapered drill rod surface both internally and externally to strengthen and extend the life of the tapered drill rod.
Shank Hexagon: 19*108 mm, 22*108mm, 25*108 mm, 25*159 mm; 6, 7, 11, 12 degree taper in most lengths, taper degree of drill steel is mostly imports for excellent drilling productivity.
For drilling medium-hard to hard and abrasive rock formations, taper angles of 11 and 12-degrees are normally used on modern drill rigs, like our model no. PD-Y58 crawler hydraulic rock drill. Also for Y6, Y10, Y24, YT24, Mobile rock drills pneumatic and hydraulic. For low impact rock drills and softer rock formations, a narrow tape range of 7 degrees is used, such as Indian, Saudi’s granite and marble quarry. A comprehensive range of taper button bits, cross bits and chisel bits with 6, 7, 11, 12 degree taper, drill hole diameter: 28mm-57mm.
Business Type: | Manufacturer, Exporter |
Brands: | KUANGBAO |
Price: | Consultation |
Packing details: | Plastic/Wooden case |
Delivery time: | 7 days after get payment |
Payment method: | T/T , Western Union, money gram, L/C at sight |
Usage: | Foundation piling. Quarry, mining, soil nailing, water well drilling, tunneling and etc. |
We have various factories and products, experienced technicians and sales team, professional quality assurance and after-sales team to help your business start and succeed.
